- Power supply: AC230V, frequency: 50Hz;
- Input power: 680VA;
- Maximum carrying capacity: 135KG;
- Headrest telescopic range: 120mm;
- Backrest backward range: 115~180 degrees;
- The highest height of cushion from the ground: 780mm;
- The lowest height of cushion from the ground: 400mm.
1. Base
New base (steel paste with strong PU cover) with 28mm thickness.
![Integral Dental Unit](/Uploads/202108/6120699d302a0.png)
2. Floor box
Built-in floor box, save space.
![Integral Dental Unit](/Uploads/202108/612069cbdc843.png)
3. Chair Frame
With linkage-movement function,make it safe and make you comfortable.
![Integral Dental Unit](/Uploads/202108/61260da9b43d6.png)
4. PU Cushion
![Integral Dental Unit](/Uploads/202108/61260e00509b8.png)
5. Bending plate
PU bending plate with 26mm thickness.
![Integral Dental Unit](/Uploads/202108/61206b2888410.png)
6. Headrest
The headrest can be slide along the track,can be adjusted for the children.
![Integral Dental Unit](/Uploads/202108/6127038da09c4.png)
7. Tool Tray
Intelligent key-touch control system with 9 memory positions.
![Integral Dental Unit](/Uploads/202108/612748420eb9f.jpg)
8. Assistant Tray
Intelligent key-touch assistant control system with a table for assistant.
![Integral Dental Unit](/Uploads/202108/61260fb89c46d.png)
9. Silicone Pad for Assistant Tray
Silicone pad which is autoclavable, its maximum bearing temperature is 135℃.
![Integral Dental Unit](/Uploads/202108/61270bfcb1120.png)
10. Suction Holder
New type strong and weak suction holder
![Integral Dental Unit](/Uploads/202108/61270463955d9.png)
11. New Type Unit Box
![Integral Dental Unit](/Uploads/202108/612707c331168.png)
12. Ceramic Cuspdor
Ceramic cuspidor, with 180 degrees rotation.
![Integral Dental Unit](/Uploads/202108/6127083c4e933.png)
13. Implant LED Lampan
The sensor implant LED lamp can be switched between white light and yellow light,the color emperature is adjustable.
![Integral Dental Unit](/Uploads/202108/61206c74eee06.png)
14. Motors
24V DC Timotion motors from Taiwan,China.
![Integral Dental Unit](/Uploads/202108/6120a87d3a45d.png)
15. Tubes
Air and water tubes from USA
![Integral Dental Unit](/Uploads/202108/61206cf602c8b.png)
16. Foot Pedal
Mutil-function foot pedal.
![Integral Dental Unit](/Uploads/202108/6120a9fbaf718.png)
17. Dentist Stool
Big side dentist stool with double adjust.
![Integral Dental Unit](/Uploads/202108/61270e55caa10.jpg)
![Integral Dental Unit](/Uploads/202108/61270f03519f0.png)

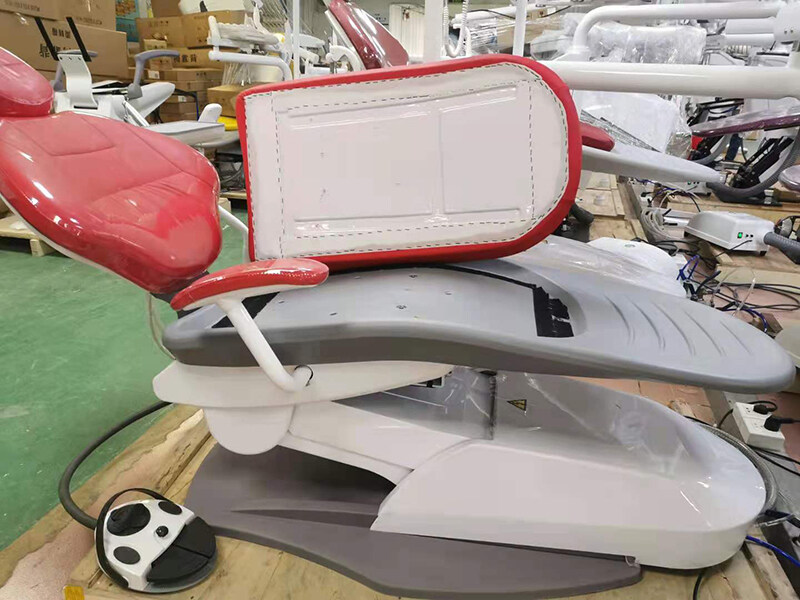

18. Complete Production Photos
![Integral Dental Unit](/Uploads/202109/614ee4e9aea84.jpg)
![Integral Dental Unit](/Uploads/202109/614ee5146b744.jpg)
Standard Specification:
2 or 4 hole high-speed handpiece tubing with connector 2 sets;
2 or 4 hole low-speed handpiece tubing with connector 1 set;
3-way syringe (cold and hot) 2 piece;
Adjustable headrest 1 set;
New design double armrest 1 set;
New design top tray with touch control 1 set;
Stainless steel operation table 1 set;
With autoclavable silicone pad,maximum bearing temperature is 135-degrees 1pcs;
5-posistion for handpiece,syringe and scaler 1set;
Suction and saliva ejector 1 set each;
LED operation lamp with sensor(white and yellow light) CX-206 1 set;
American style lamp arm 1set;
Build-in model Lcd X-film viewer 1 set;
24V DC motors 1 set;
Assistant tray with touch control 1 set;
Water purified system 1 set;
Water heating system 1 set;
Water bottle 600ml 1 pcs;
Auto water supply and flush cuspidor system 1 set each;
Ceramic cuspidor with 180-degrees rotation 1 set;
Multi-function foot pedal CX-106 1 set;
Big size dentist stool with double adjust CX-147 1 piece;
PU cushion 1 set;
Solenoid valve 2 pcs;
ABS plastic covers 1 set;
USA air and water tubes 1set;
All kinds of copper valves 1set;
Chair without safety system
Linked movement chair frame
New base(steel paste with strong PU cover)
Packing size: 142*100*125CM
Gross Weight: 260KG
