- Power supply: AC220V, frequency: 50Hz;
- Input power: 680VA;
- Maximum carrying capacity: 135KG;
- Headrest telescopic range: 120mm;
- Backrest backward range: 115~180 degrees;
- The highest height of cushion from the ground: 780mm;
- The lowest height of cushion from the ground: 400mm.
1. Base
Steel paste with 13mm thickness.
![](/Uploads/202108/612762a7cb13f.png)
![](/Uploads/202108/612762ed9c4a0.png)
2.Built-in or External Floor Box
![](Uploads/202108/612891b16f2ca.png)
![](Uploads/202108/612891cc989b0.png)
3.PU Cushion
![](Uploads/202108/6128892e97c2a.jpg)
4.New Type Front Cover
![](Uploads/202108/612890a9cdc33.png)
5. Unit Box
Intelligent key-touch control system with OPG X-film viewer.
![](/Uploads/202109/613b1b7c476c2.jpg)
6. Assistant Tray
Intelligent key-touch assistant control system.
![](/Uploads/202109/613b1c4c420db.jpg)
7. Silicone Pad For Tool Tray
Silicone pad which is autoclavable, its maximum bearing temperature is 135℃.
![](/Uploads/202109/613b1d0a3ea6f.png)
8. Unit Box
![](/Uploads/202109/613f0a72e2268.jpg)
9. Frosted Glass Or Ceramic Cuspdor
Glass or Ceramic cuspidor, with 180 degrees rotation.
![](/Uploads/202109/613f15ce99a82.png)
![](/Uploads/202109/613f0df381a43.jpg)
10. 2pcs Water Bottles
![](/Uploads/202109/613f137648bc4.jpg)
11. PU Bending Plate With 26mm Thickness
![](/Uploads/202109/613f14bf7c05e.png)
12. LED Operation Lamp
New sensor LED lamp,the handle can be removed for disinfection and the lamp is with 360-degrees rotation.
![](/Uploads/202109/613f0f703b6b3.jpg)
13. Motors
24V DC motors from China.
![](Uploads/202108/6129e8b803d9f.png)
14. Tubes
PVC air and water tubes.
![](/Uploads/202109/613f1ccac7b58.png)
15. Foot Pedal
Mutil-function foot pedal
![](/Uploads/202109/613f1775a840d.jpg)
16. Dentist Stool
Big side dentist stool.
![](/Uploads/202109/613f196fcf6b6.png)
![](/Uploads/202109/613f1b1cbcab0.png)

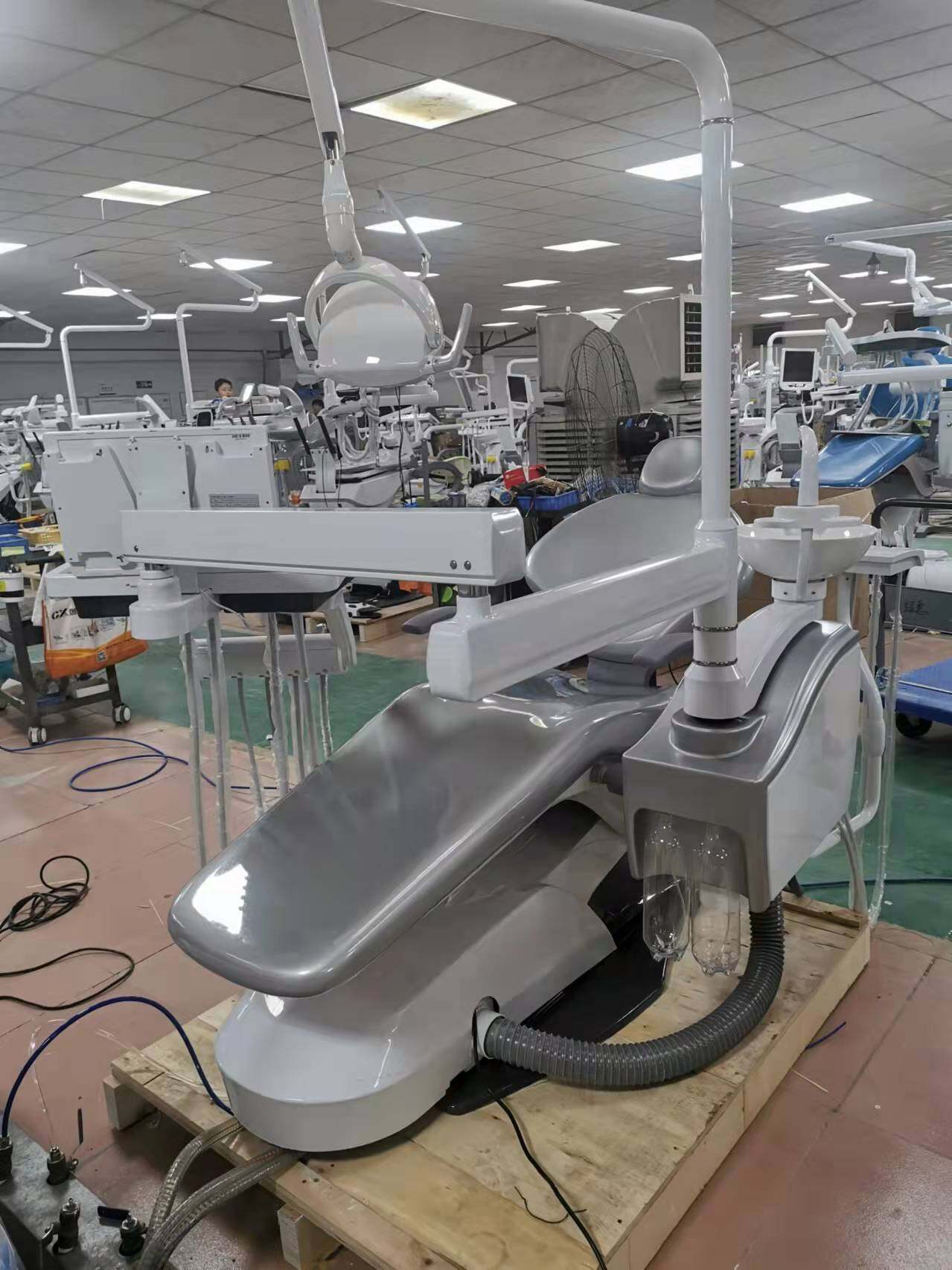

17. Complete Production Photos
![](/Uploads/202109/614e99db87eed.jpg)
![](/Uploads/202109/614e9a8f2c32b.jpg)
Standard Specification:
4 hole high-speed handpiece tubing with connector 2 sets;
4 hole low-speed handpiece tubing with connector 1 set;
3-way syringe (cold and hot) 2 piece;
Adjustable headrest 1 set;
New design double armrest 1 set;
New design down tray with touch control 1 set;
24V OPG X-film viewer 1set;
With autoclavable silicone pad,maximum bearing temperature is 135-degrees 1pcs;
5-posistion for handpiece,syringe and scaler 1set;
Suction and saliva ejector 1 set each;
LED operation lamp with sensor CX-152 1 set;
American style lamp arm 1set;
Build-in model Lcd X-film viewer 1 set;
24V DC motors 1 set;
Assistant tray with touch control 1 set;
Water purified system 1 set;
Water heating system 1 set;
Water bottle 600ml 1 pcs;
Auto water supply and flush cuspidor system 1 set each;
Glass cuspidor with 180-degrees rotation 1 set;
Multi-function foot pedal CX-106 1 set;
Dentist stool 1set;
PU cushion 1 set;
Solenoid valve 2 pcs;
ABS plastic covers 1 set;
PVC air and water tubes 1set;
All kinds of copper valves 1set;
Chair without safety system;
Chair without linked movement chair frame;
Packing size: 142*100*120CM;
Gross Weight: 260KG.
