- Power supply: AC230V, frequency: 50Hz;
- Input power: 680VA;
- Maximum carrying capacity: 135KG;
- Headrest telescopic range: 120mm;
- Backrest backward range: 115~180 degrees;
- The highest height of cushion from the ground: 780mm;
- The lowest height of cushion from the ground: 400mm.
1. Built-in floor box, save space.
Built-in floor box, save space.
3. Cushion
Adhesive type seat with micro-fiber leather.
4. Armrest
The armrest is rotable, which is easy for patient to lie down the chair.

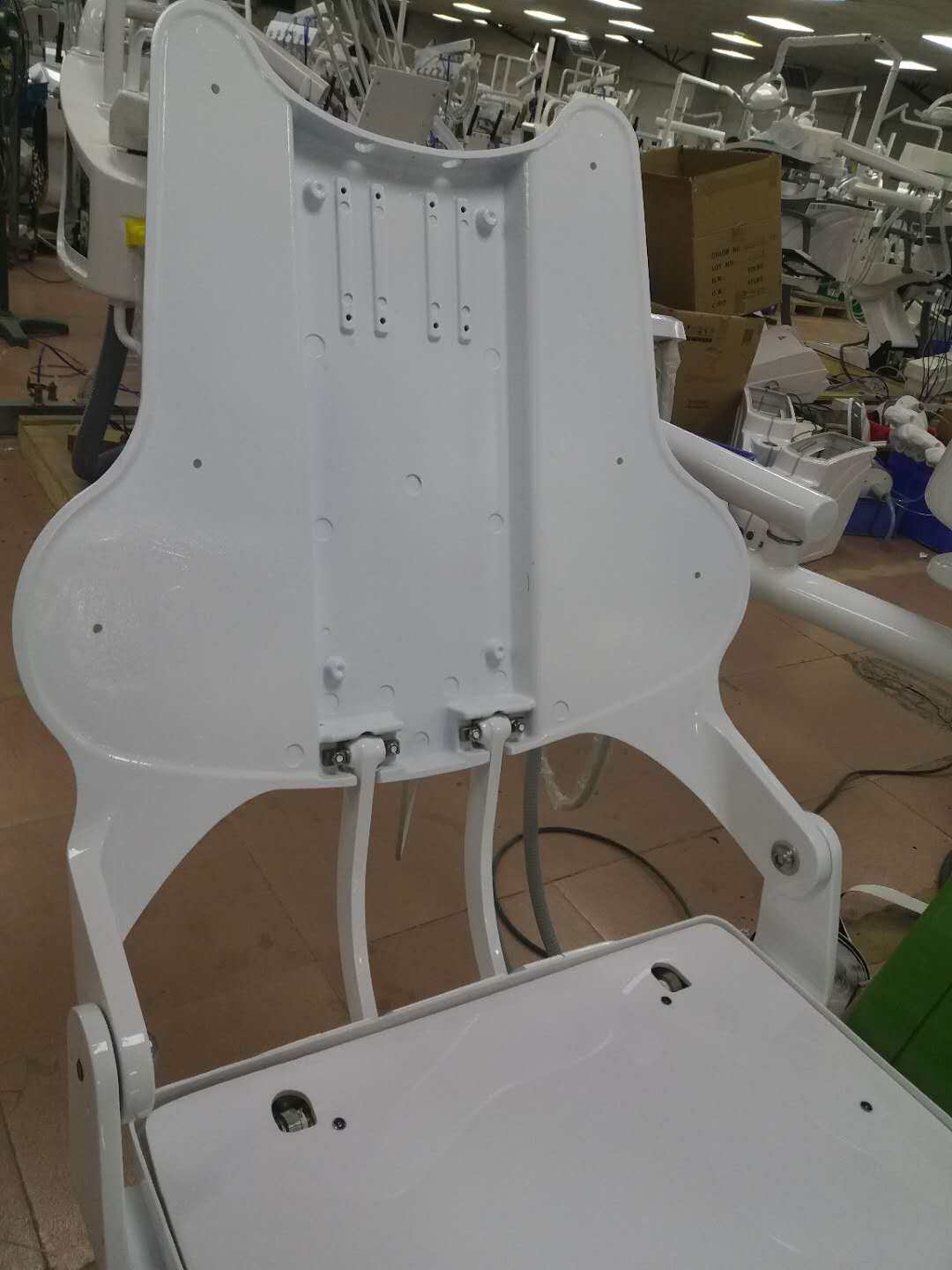

5. Aluminum Backrest
Aluminum backrest makes the chair more stronger.
6. Headrest
The headrest can be slide along the track,can be adjusted for the children.

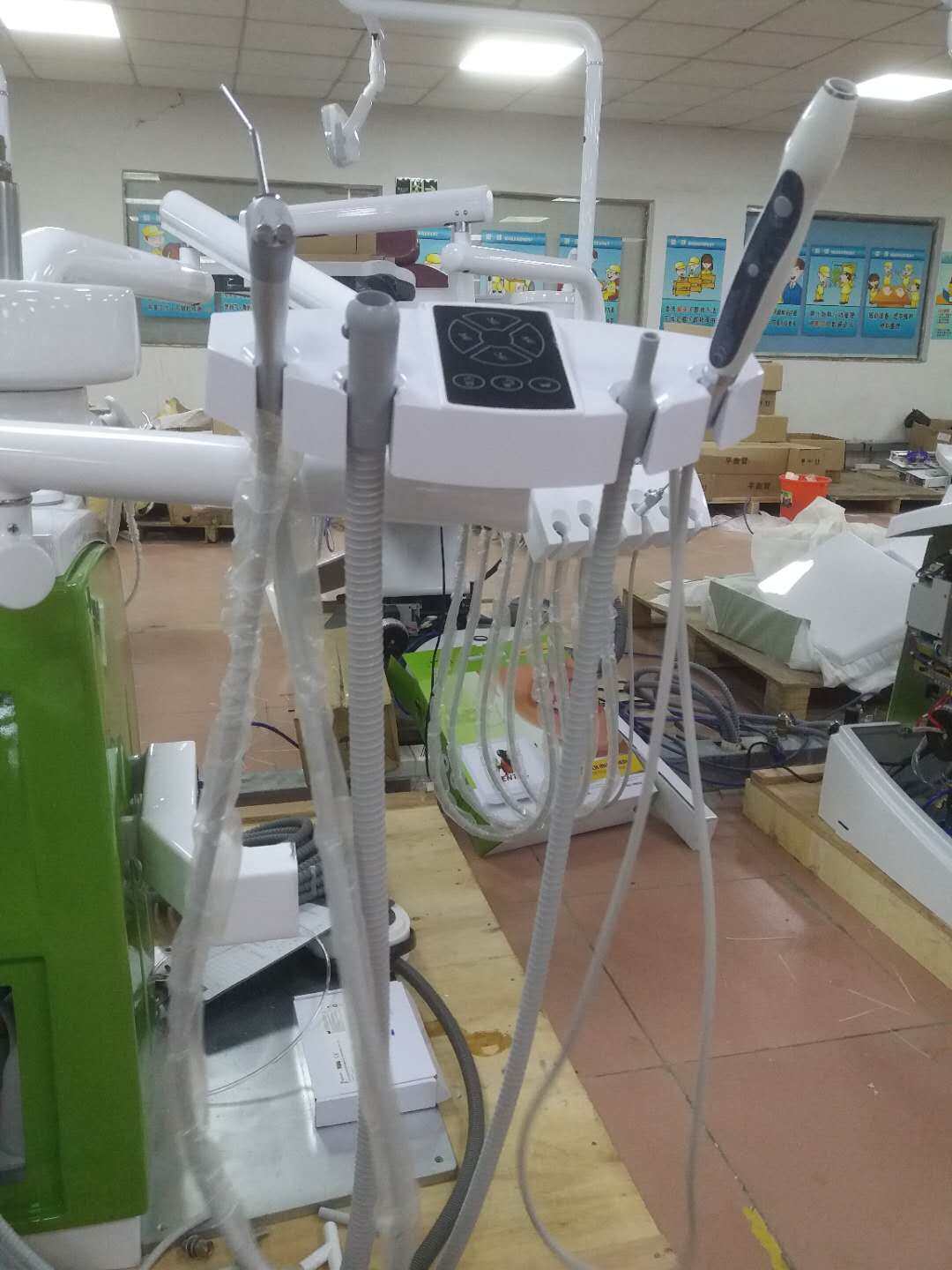

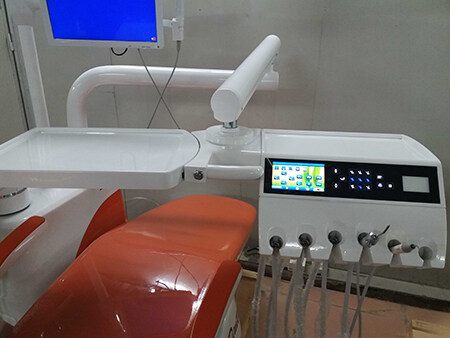

7. Tool Tray
Intelligent key-touch control system with 9 memory positions,with low bottle water alarm function.
8. Assistant Tray
Intelligent key-touch assistant control system with a table for assistant.

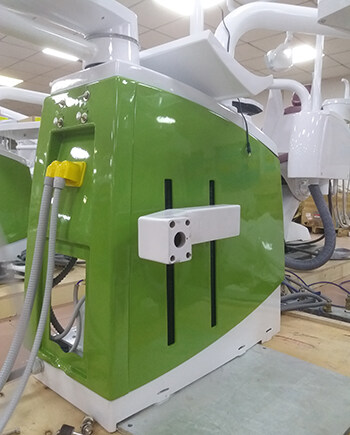

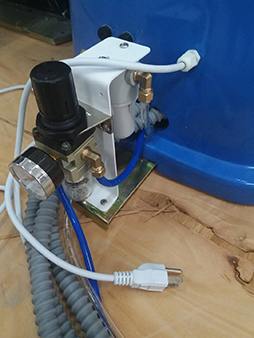

9. Italian Solenoid Valve 10. Separate unit box
3pcs Parker Solenoid Valve from Italy

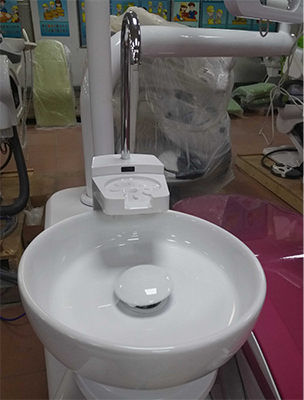

11. Ceramic cuspidor
Ceramic cuspidor with sensor water supply.

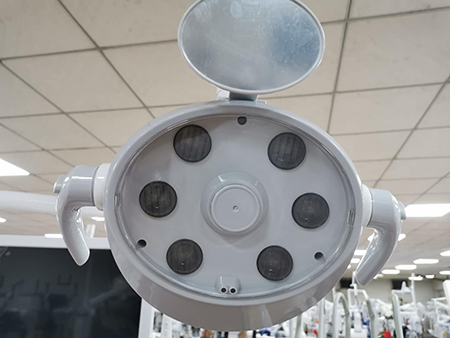

13. LED lamp
LED Operation lamp with sensor,the handle can be removed for disinfection, 360-degree rotation.
12. Motors
24V DC Timotion motors from Taiwan,China.

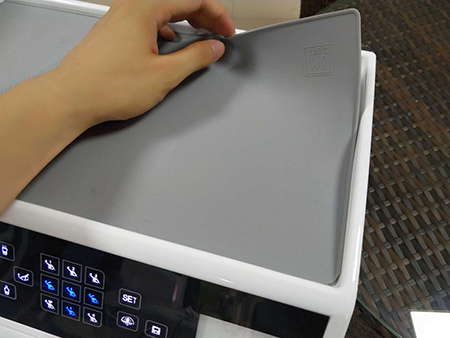

14. Silicone Pad
Autoclavable silicone pad which is autoclavable, its maximum bearing temperature is 135℃.
15. Tubes
Air and water tubes from USA.

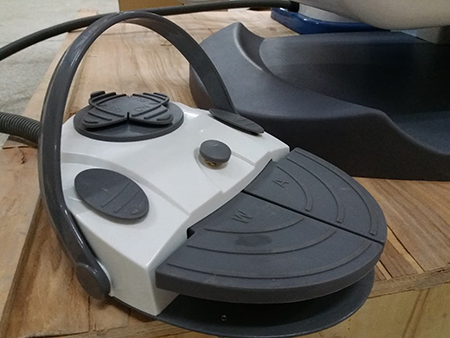

16. Foot Pedal
Mutil-function foot pedal

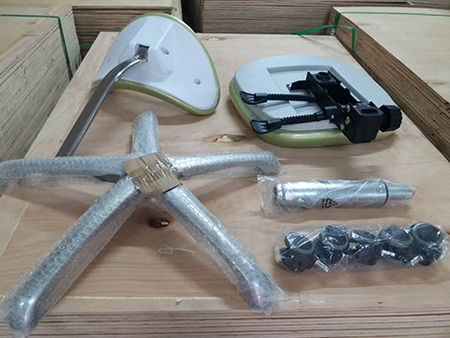

17. Dentist stool
Big side dentist stool with double adjust,with Micro-fiber leather cushion.

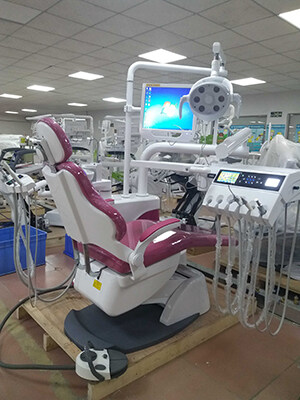

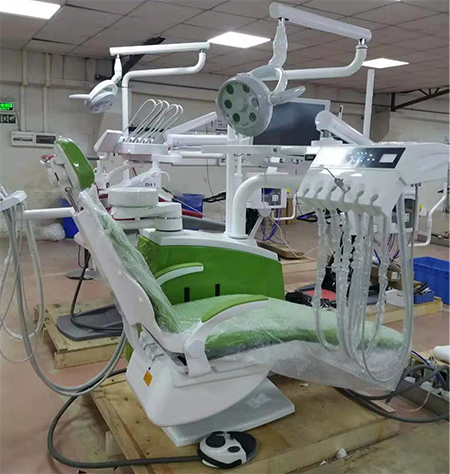

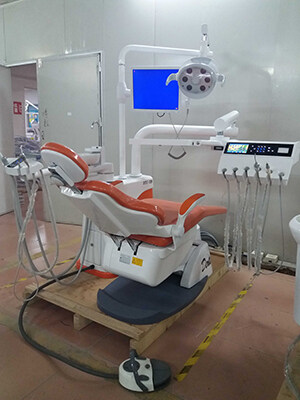

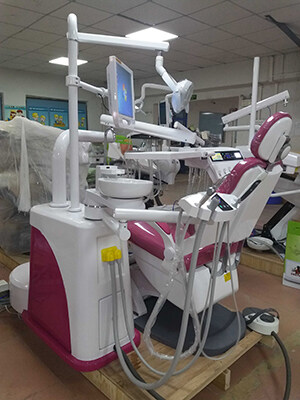

17. Complete Set
With linkage-movement function, make it safe and make you comfortable.
Standard specification:
1. 4 hole high-speed handpiece tubing with connector 2 sets;
2. 4 hole low-speed handpiece tubing with connector 1 set;
3. 3-way syringe (cold and hot) 2 piece;
4. Adjustable headrest 1 set;
5. Double armrest 1 set;
6. Down-mounted tool tray with touch control 1 set;
7. With autoclavable silicone pad,maximum bearing temperature is 135-degrees 1pcs;
8. 6-posistion for handpieces ,syringe, scaler and micro motor 1set;
9. Suction and saliva ejector 1 set each;
10. LED operation lamp with sensor CX-152 1 set;
11. American style lamp arm 1set;
12. Build-in model Lcd X-film viewer 1 set;
13. 24V DC motors 1 set;
14. Assistant tray with touch control 1 set;
15. Water purified system 1 set;
16. Water heating system 1 set;
17. Water bottle 600ml 2 pcs;
18. Auto water supply and flush cuspidor system 1 set each;
19. Ceramic cuspidor with 180-degrees rotation 1 set;
20. Multi-function foot pedal CX-106 1 set;
21. Big size dentist stool with double adjust CX-147 1 piece;
22. Micro-fiber leather cushion 1 set;
23. Dangling chair design 1set;
24. Aluminium backrest 1set;
25. Imported Solenoid valve CX-097 2 pcs;
26. ABS plastic covers 1 set;
27. Imported air and water tubes 1set;
28. Imported strong and weak suction tube 1set;
29. All kinds of copper valves 1set;
30. Chair with 12 memories positions 1set;
31. Chair without safety system;

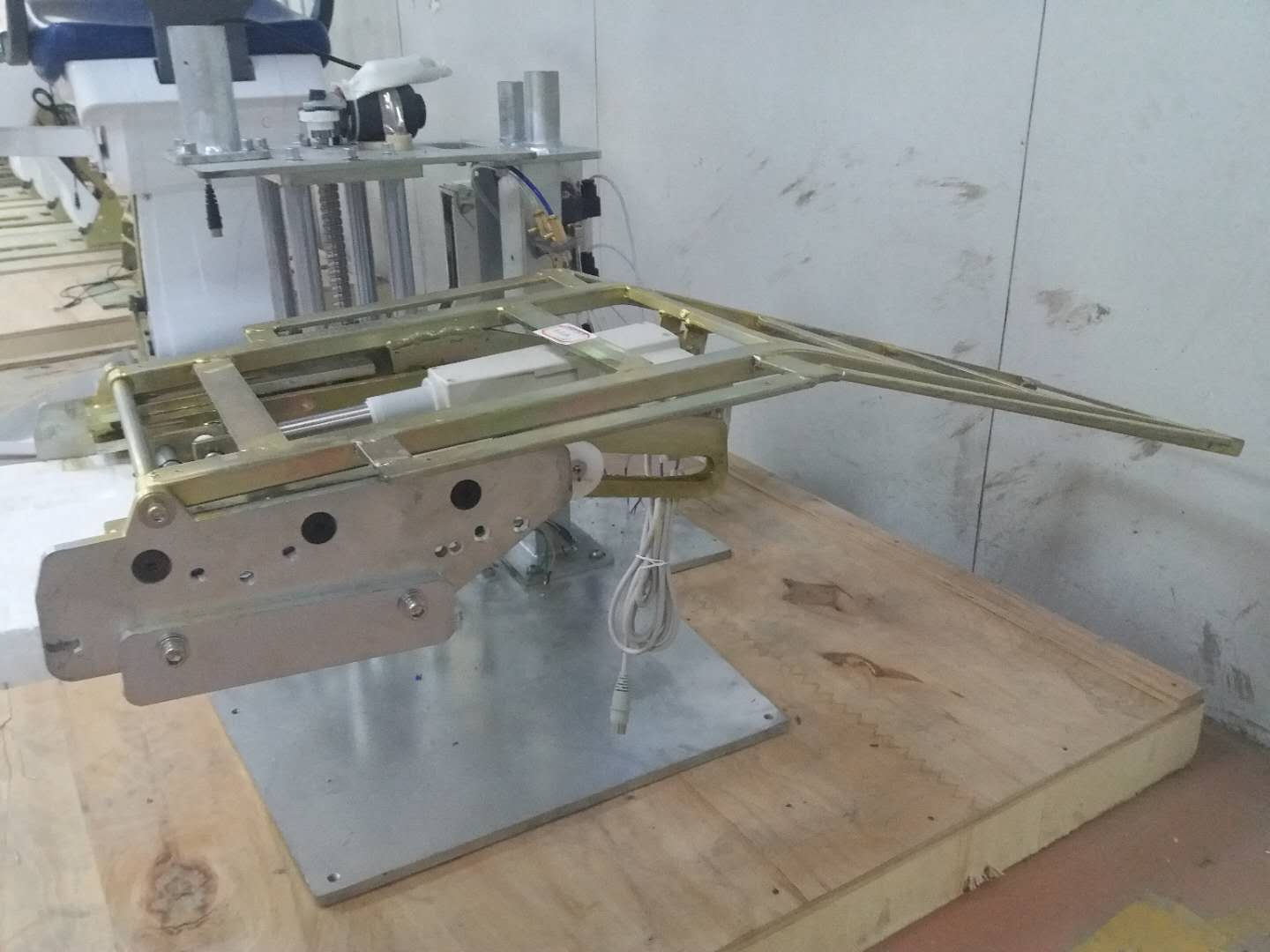

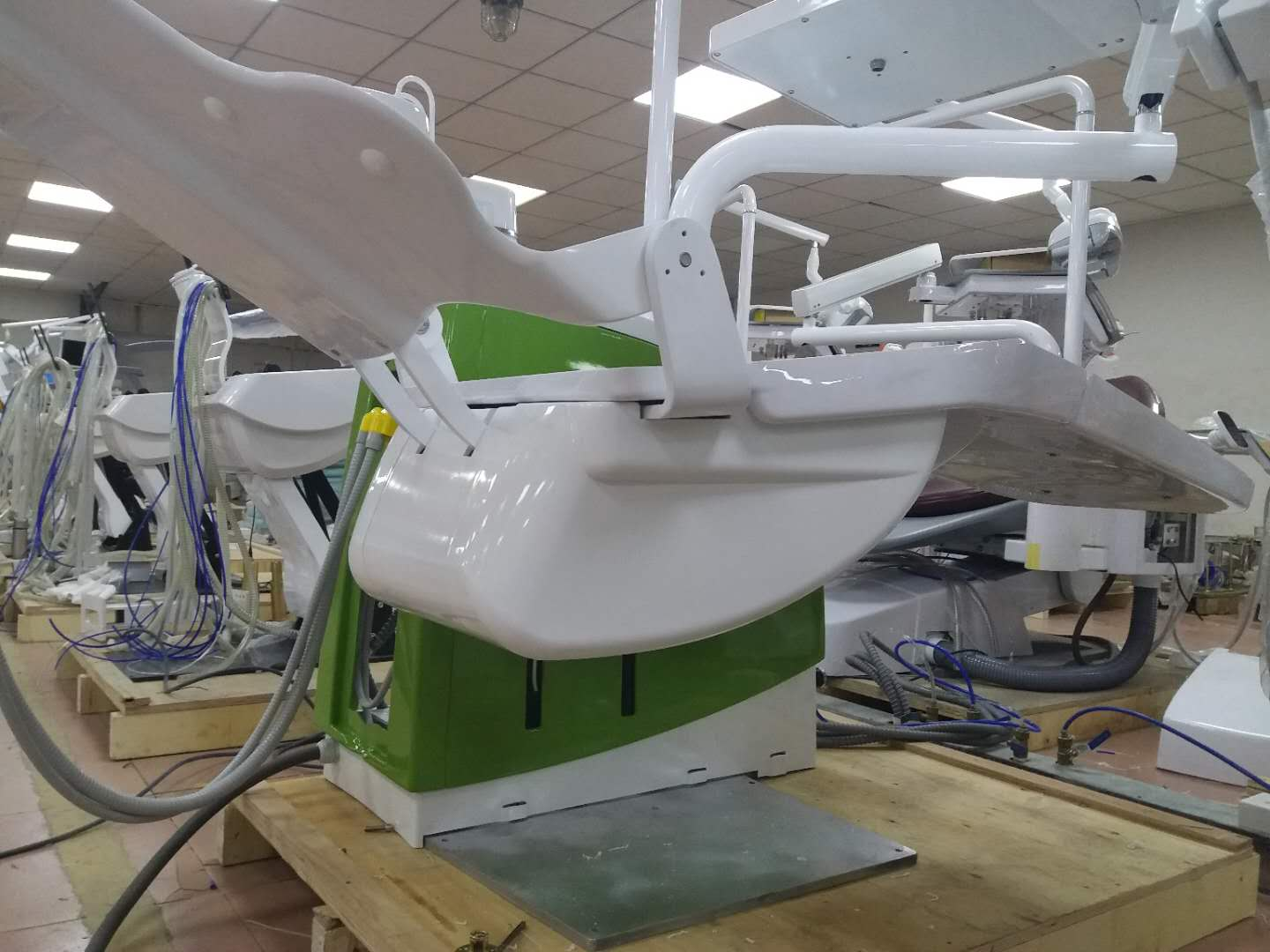

32. Linked movement chair frame;
33. New base(steel paste with strong PU cover);
34.Packing size: 170*115*155CM;
35. Gross Weight: 320KG.
